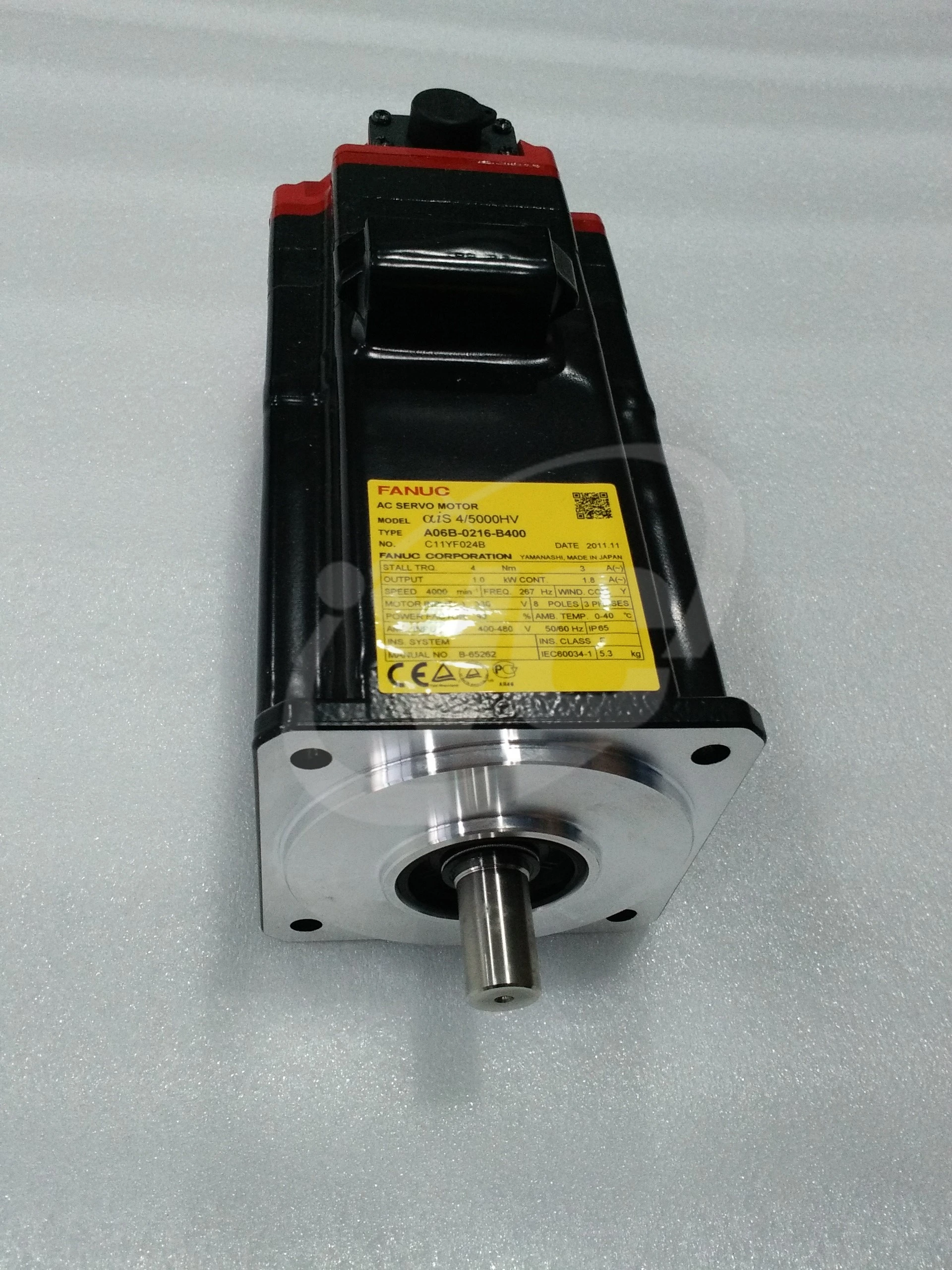

FANUC A06B-0216-B400 Alpha iS 4/5000HV Servo Motor

Q: What should be checked before replacing this FANUC servo motor?

Match the complete FANUC part number and verify the motor nameplate, shaft, brake where applicable, pulse coder, connectors, mounting dimensions and machine application before ordering.

Q: Can actual motor and nameplate photos be provided before shipment?

Yes. Actual product and nameplate photos can be provided to help confirm the model and configuration before shipment.

The FANUC A06B-0216-B400 is an Alpha iS 4/5000HV AC servo motor used in FANUC CNC and industrial automation applications. This standard configuration uses a straight shaft, a 24 V DC brake and an Alpha iA1000 pulse coder.FANUC technical data identifies a rated output of 1.0 kW at 4000 min^-1, a maximum speed of 5000 min^-1, a stall torque of 4.0 N*m and a maximum torque of 8.8 N*m.Before ordering, please match the complete part number and verify the shaft, brake, pulse coder, connectors, mounting dimensions and machine application against the existing motor. Actual product and nameplate photos can be provided before shipment.

Before purchasing, please send the complete model number, photos and application details for review.

Availability: In Stock

WhatsApp Request a Quote

Product Details

Manufacturer: FANUC

Part Number: A06B-0216-B400

Product Type: AC Servo Motor

Series: Alpha iS

Motor Model: Alpha iS 4/5000HV

Amplifier Supply Family: 400-480 V AC family

Shaft Configuration: Straight shaft

Brake: 24 V DC brake

Feedback Device: Alpha iA1000 Pulse Coder

Rated Output: 1.0 kW

Rated Speed: 4000 min^-1

Maximum Speed: 5000 min^-1

Stall Torque: 4.0 N*m

Stall Current: 3.0 Arms

Maximum Torque: 8.8 N*m

Rotor Inertia: 0.000515 kg*m^2

Rotor Inertia with Brake: 0.000535 kg*m^2

Torque Constant: 1.32 N*m/Arms

Back EMF Constant: 46 Vrms per 1000 min^-1

Armature Resistance: 2.8 ohm

Mechanical Time Constant: 0.003 s

Thermal Time Constant: 20 min

Static Friction: 0.2 N*m

Net Weight (This Version): 5.3 kg

Maximum Servo Amplifier Current: 10 Apeak

Brake Torque: 3 N*m

Brake Release Time: 60 ms

Brake Hold Time: 20 ms

Brake Power Supply: 24 V DC +/-10%

Brake Current: 0.9 A

Brake Power: 22 W

Approximate Brake Weight Increase: 1.0 kg

Before Ordering

For A06B-0216-B400, HV identifies the high-voltage amplifier family; it does not establish a 400 V motor rating.
Check the motor's electrical label before selecting a replacement.

Applications

FANUC CNC and industrial automation applications requiring the confirmed Alpha iS 4/5000HV configuration.
